| Oil Skimmer :- |
 |
|
| |
|
| |
| Introduction:- |
|
|
| |
| Oil skimmers or Oil removal systems are used in a waste water treatment plant to remove excess oil from sewage or Industrial Effluent water. |
| |
| MANUAL OIL SKIMMER: |
| |
| This is suitable for installation in client’s concrete tank. Each unit will consist of :- |
| |
- Slotted oil pipe in HDPE/M.S. Epoxy painted.
- Clamp.
- Handle.
- Special bushes.
|
| AUTOMATIC OIL SEPARATOR suitable for client’s RCC Oil separator. |
| |
| Each unit will consist of :- |
| |

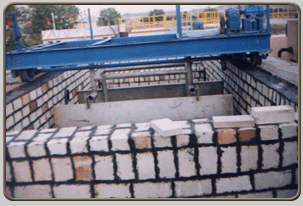

- Traveling trolley with 4 wheels.
- Drive arrangement of motor, gear box, chains and sprockets.
- Skimmer Bracket with rubber squeegees.
- Guide angles with support brackets.
|
AUTOMATIC OIL SEPARATOR suitable for client’s Existing vessel. |
| |
| The unit will consist of :- |
| |
- Float in S. S.
- Motor.
- Gear box.
- Skimming blade.
|
| SALIENT FEATURES OF “SHIVAM” AUTOMATIC OIL SKIMMER |
| |
| AUTOMATIC OIL SKIMMER :- |
| |
| Each unit will consist of :- |
| |
- Motor.
- Drive unit.
- Oil collecting Disc.
- Rubber scrappers.
- Oil Collection Chamber.
- Oil pump.
|
| OPERATION:- |
| |
The RCC Tank will have oil baffle on the outlet side and outlet water launder. The unit consist of Motor, Gear, Oil collecting Disc with rubber scrappers, Oil Collection Chamber, and oil pump.
The disc slowly rotates and offer a large surface area for oil to collect on the same and the scrappers subsequently scrap the oil into the collection chamber, from where it is pumped out. |
| |
| SALIENT FEATURES OF OIL SKIMMER :- |
| |
- Compact unit without a traveling bridge/trolley.
- High oil removal efficiency.
- Practically, no water comes out with oil, thereby ensuring good oil recovery.
|
| Bar Screen :- |
|
|
| |
|
| |
| Introduction:- |
|
|
| |
| Bar screens are typically at the headworks (entrance) of a wastewater treatment plant (WWTP), bar screens are used to remove large objects such as rags, plastics bottles, bricks, solids, and toy action figures from the waste stream entering the treatment plant. |
| |
| MANUAL BAR SCREEN: |
| |
| This structure is suitable for installation in client’s concrete screen chamber. Each unit will consist of :- |
| |
- Screen frame consisting of flats.
- Handle.
|
| AUTOMATIC SCREEN: |
| |
| Each unit will consist of :- |
| |
- Drive arrangement consisting of Motor, Gear box and bearing housing.
- Rake mechanism.
- Screen frame with screen bars.
|
| Grit Collector:- |
|
|
| |
|
| |
| Introduction:- |
|
|
| |
| These units are optimally designed for the required hydraulics to ensure optimum grit separation even at peak hydraulic load. |
| |
| GRIT REMOVAL MECHANISM: |
| |
| This unit is suitable of installation in clients concrete tank. Each unit will consist of :- |
| |
- Rotating bridge with drive arrangement of Motor, Gear box,coupling etc.
- Heavy duty central bearing housing to take care of undulations in coping.
- Current collector.
- Grit washer with pump.
- Flexible hose for grit removal.
- Interconnecting piping for grit, washer and pump.
|
| GRIT REMOVAL MECHANISM suitable of installation in client’s concrete tank. Each unit will consist of :- |
| |
- Main drive unit with Motor and Worm Gear box.
- Shaft.
- Scrapper arms with blades and scoops.
- Tie rods.
- Diffuser baffle.
- Classifier drive system with Motor and gear box.
- Scrapper blades at bottom.
|
Advantages:-: |
|
|
| |
- Rugged precision gear/bearing drive located entirely above the waterline
- Low energy consumption
- Simple and inexpensive maintenance requirements
- Custom retrofit mechanisms available for existing tanks
|
| |
| |
