| D.M.Plants:- |
 |
|
| |
 |
| |
| Introduction:- |
|
|
| |

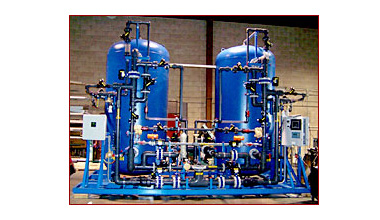

We manufacture and provide demineralization or deionization plants for removing mineral salts from water by using the ion exchange process. Our DM plants are available in different sizes and materials, manually operated or fully Automatic, & ready to install & are available as standard models or custom built versions for specific needs |
| |
Working Principle:- |
|
|
| |

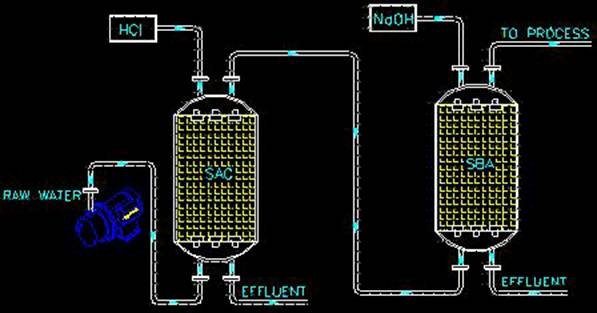

A Typical two-bed DM Plant consists of two FRP/MS Rubber lined Pressure vessels connected in series along with its internal fittings. The first unit consists of high capacity strongly acidic cation exchange resin, which converts positive ions of salt and replaces them with hydrogen ions to form respective acids, which are absorbed in next vessel by strongly basic anion exchange resin. The water obtained by this process shows conductivity less than 20 µ S / cm at 25o C and total dissolved solids less than 10 ppm.
Further high purity water can be achieved by Mixed Bed Deionizers, which are designed to produce high purity treated water. They can be used as polishing units after two bed DM Plant to obtain high purity water. Mixed Bed Deionizers are single column units, filled with strongly acidic cation and strongly basic anion exchange resins mixed together. |
|
| |
Applications:- |
|
|
| |
- Boiler Feed
- Cooling Systems
- Foundries
- Distilleries
- Pharmaceutical companies
|
|
Advantages:- |
|
|
| |
- Easy to install & operate
- Complete Assembly with backwash & regeneration equipment
- Produces DM water of high purity
|
| |
