| Up-Flow Anaerobic Sludge Blanket Reactor (UASBR):- |
 |
|
| |
 |
| |
| Introduction:- |
|
|
| |
Up-flow Anaerobic Sludge Blanket (UASB) is the most widely used high rate anaerobic system for anaerobic sewage treatment. |
| |

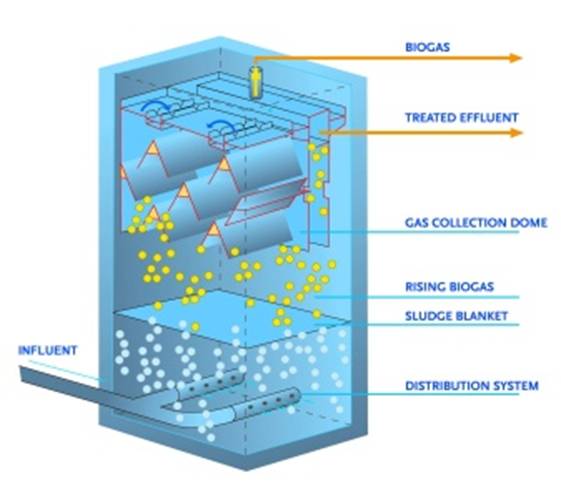

Working Principle:- |
|
|
| |
The influent is introduced at the bottom. It passes through blanket of the sludge before leaving the reactor. The sludge blanket mainly consists of inorganic particle with anaerobic bio-mass grown around it. Sludge blanket acts as a filter and helps in removing suspended solids. COD reduction takes by substrate reduction by bio-mass.
Primary sedimentation is not required prior to UASB as inorganic particles itself are used as media in blanket formation. The treated wastewater is collected at the top of reactor. Bio-gas produced during the degradation is collected at top. |
| |
|
| |
Applications:- |
|
|
| |
- Biological treatment of wastewater with low to very high strength of wastewater
- Sewage treatment for medium to large towns/ cities.
- Treatment of distillery spent wash / pulp mill black liquor.
|
| |
Advantages:- |
|
|
| |
- No energy requirement for aeration or mixing .
- Energy production by means of biogas.
- Low cost of operation and maintenance.
- The energy requirement in the UASB reactor is very low.
- UASB system generates energy in the form of bio gas which can be used for the production of electricity and which can make UASB plants self sustaining for power requirement.
- This system reduces the space requirement, which is a big advantage for developing cities.
- The production of excess sludge in a UASB reactor is very low. This reduces the load on the sludge treatment system. However, the sludge from UASB plant is very stabilized and can be used as manure.
- Final polishing pond can be used for fish culture, which can be source of revenue.
|
| |
