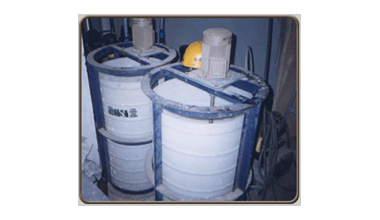

| Rapid Mixer / High Speed Agitator:- |
 |
|
 |
| |
| Introduction:- |
|
|
| |
| SHIVAM Flash mixers are specially designed and fabricated for the process requirement of water and wastewater treatment. The mixer design ensures efficient, minimum energy consumption and long life. This equipment blends coagulants and other chemicals with water / wastewater prior to flocculation. The aggressive agitation results in instantaneous and effective mixing of chemicals. This unit is also useful for general mixing. |
| |
| Specification :- |
|
|
| |
| This unit is suitable for installation in concrete/HDPE tank. |
| |
| Each unit will consist of :- |
- TEFC squirrel cage induction motor with IP55 degree of protection.
- Stainless steel shaft.
- Stainless steel propeller.
- Interconnecting coupling.
- Clamp.
|
| |
| IMPELLER Four blades pitched paddle type impeller. |
| Support channels and beams shall be supplied and laid by client. |
- Suitable for intermittent & continuous processes.
- Compact design & economically priced.
- Modular design enables various mounting arrangements.
(i.e. from open tank to closed tank.)
- High efficiency impellers designed for specific process applications.
- Variable output speed by Variable Frequency Drive.
- Oversized tapered roller bearings for long life continuous processes.
- Power range from 0.06 HP to 25 HP & onwards.
|
| |
Applications:- |
|
|
| |
- Re-suspending settled solids before pumping out like solvents, paints.
- Fluid batch preparation before injecting into the process.
- Preventing stratification of fluids-coatings, lubricants.
- Heat transfer.
- PH control
- High viscosity mixing.
- Bringing various fluids to a uniform blend like dyes.
- Gas dispersion
|
|
| |
